Automates Telegram messages for work check-in/check-out using n8n

The Goal:

The main goal for this project was to make use of the trending tool “n8n” and gain experience with it, by also making my tasks more automated Credits to:NetworkChuck

Features

  • Sends check-in messages at 7 AM (Mon–Fri)
  • Sends check-out messages at 3 PM (Mon–Fri)
  • Skip holidays via AI commands

My Setup/Prerequisite

  • n8n installed in docker container
  • Oracle free tier machine 1gb RAM
  • Ubuntu Server
  • Docker installed
  • A method to expose to public

Process

n8n installation/setup

Started by installing n8n in a docker container with the following docker-compose.yaml:

version: "3.8"
services:
n8n:
image: n8nio/n8n
restart: unless-stopped
ports:
- "5678:5678"
environment:
- N8N_BASIC_AUTH_ACTIVE=true
- N8N_BASIC_AUTH_USER=admin
- N8N_BASIC_AUTH_PASSWORD=password
- GENERIC_TIMEZONE=Asia/Colombo
- NODE_ENV=production
- N8N_SECURE_COOKIE=false
volumes:
- /home/ubuntu/n8n_data:/home/node/.n8n
  • n8n installed in docker container
  • running on port 5678

Allowing network traffic on Oracle Cloud for port “5678”

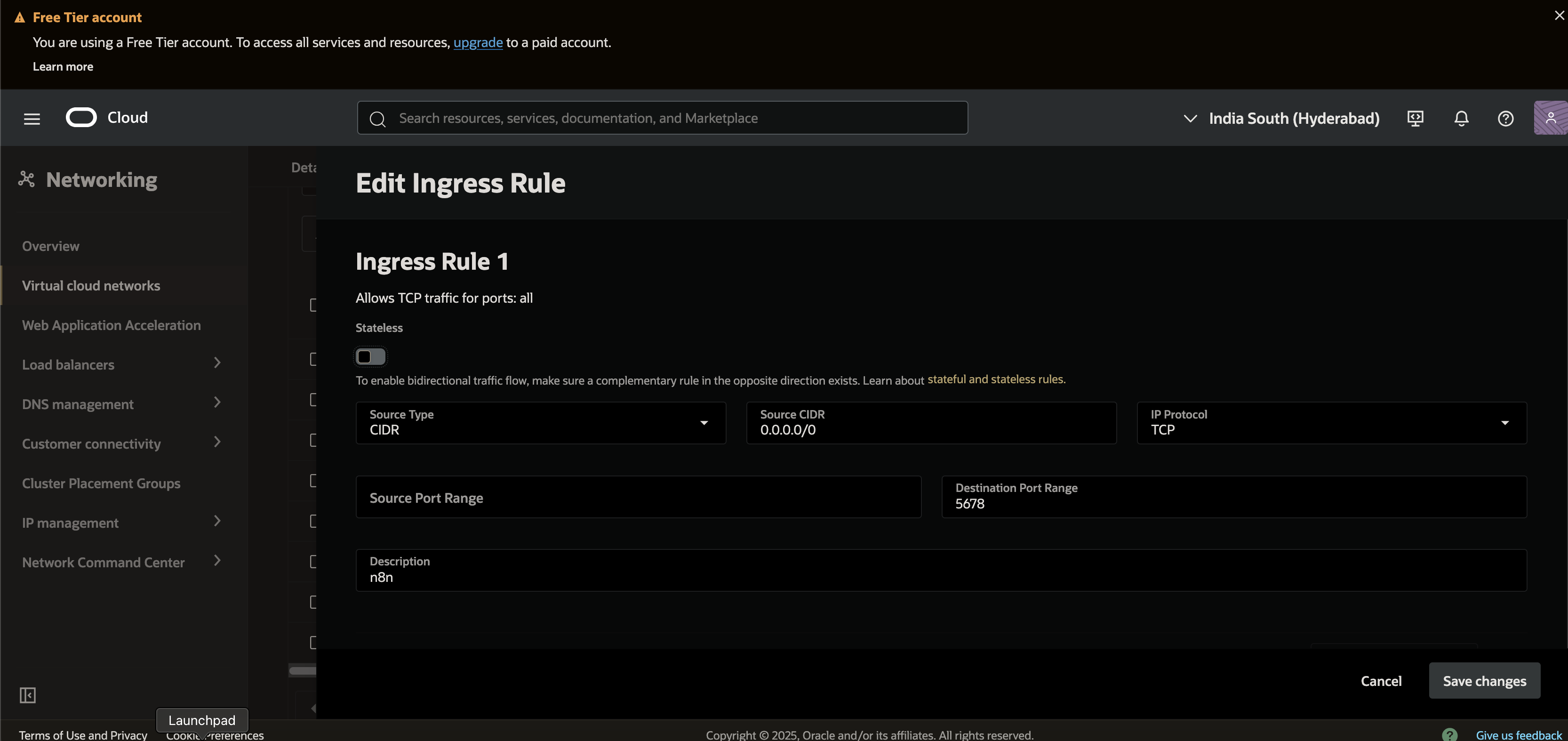

Allowed network traffic to port 5678 of my cloud server Allowed traffic on port 5678 oracle cloud

Accessing n8n from local machine

Since n8n was installed on my cloud machine which running ubuntu server cli, after exposing the port to public I accessed the n8n with :5678 which worked. -Proceeded with the inital basic setup with few details which needed to be set

Creating the workflow

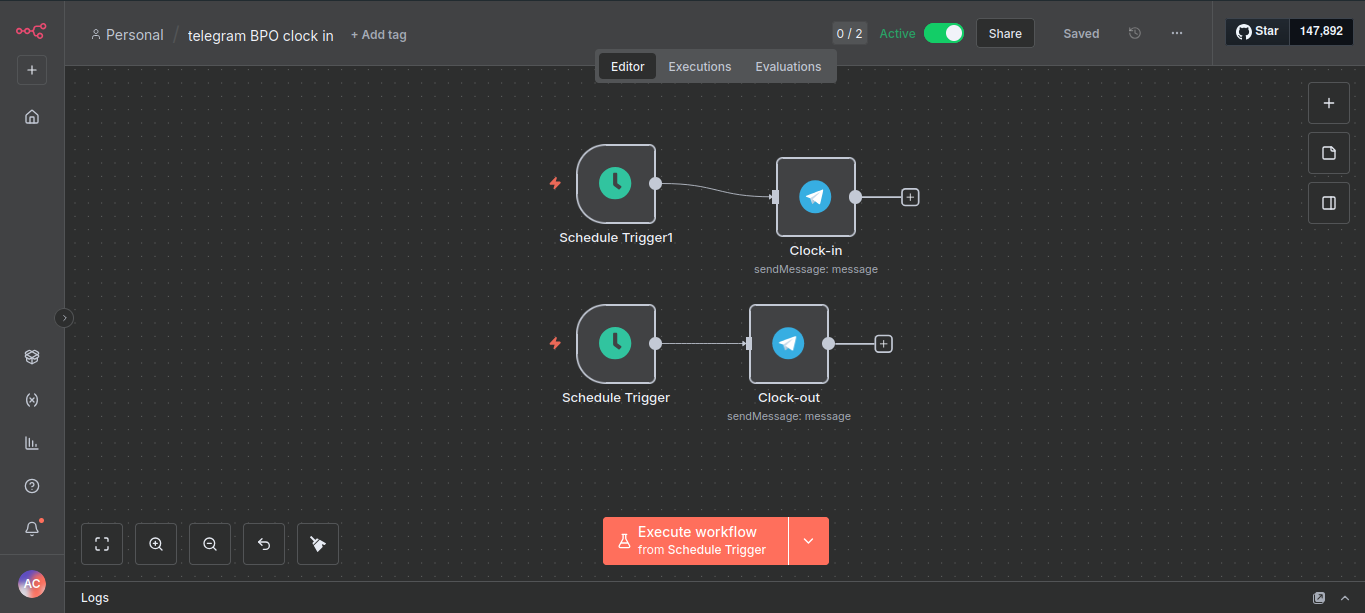

The workflow basic structure is constructed with two triggers which are for the “Check in” and “Check out” times so when it reaches the specified time and day it would run the workflow n8n workflow

What needs to be done to allow n8n to communicate with telegram:

  1. Create a Telegram Bot (refer to: Create a telegram bot)
  2. Add it to the relevant group for the message
  3. Get GROUP CHAT ID for the relevant group to receive the automated Clock-in/Clock-out message(refer to: getting GROUP ID)

This resource can be used for getting Chat ID whether it is a group or any other chat method but the bot needs to be already in the required chat: (https://gist.github.com/nafiesl/4ad622f344cd1dc3bb1ecbe468ff9f8a#get-chat-id-for-a-group-chat)

**n8n workflow

  1. Started by creating a workflow then adding a “Schedule Trigger” with following rules.

schedule trigger

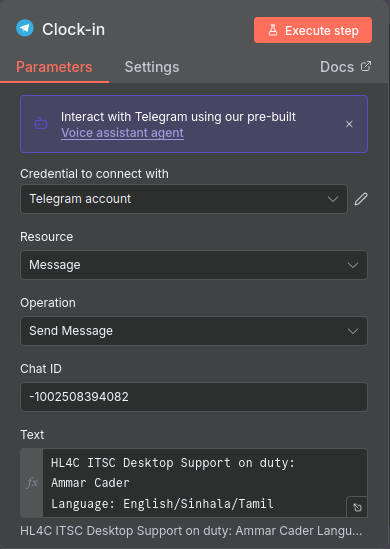

  1. Then by adding a telegram “Send text message” the job is done. this node with rules added and with the api also to make the comunication possible.

schedule trigger

Now since the clock in process was done the clockout autnomation didnt have much to do after just duplicating the “Clock-in” process. Just few changes such as the trigger’s time changed to the “Clock-out” time and also in telegram “Send text message” node the clock in message was changed to the clockout message.
